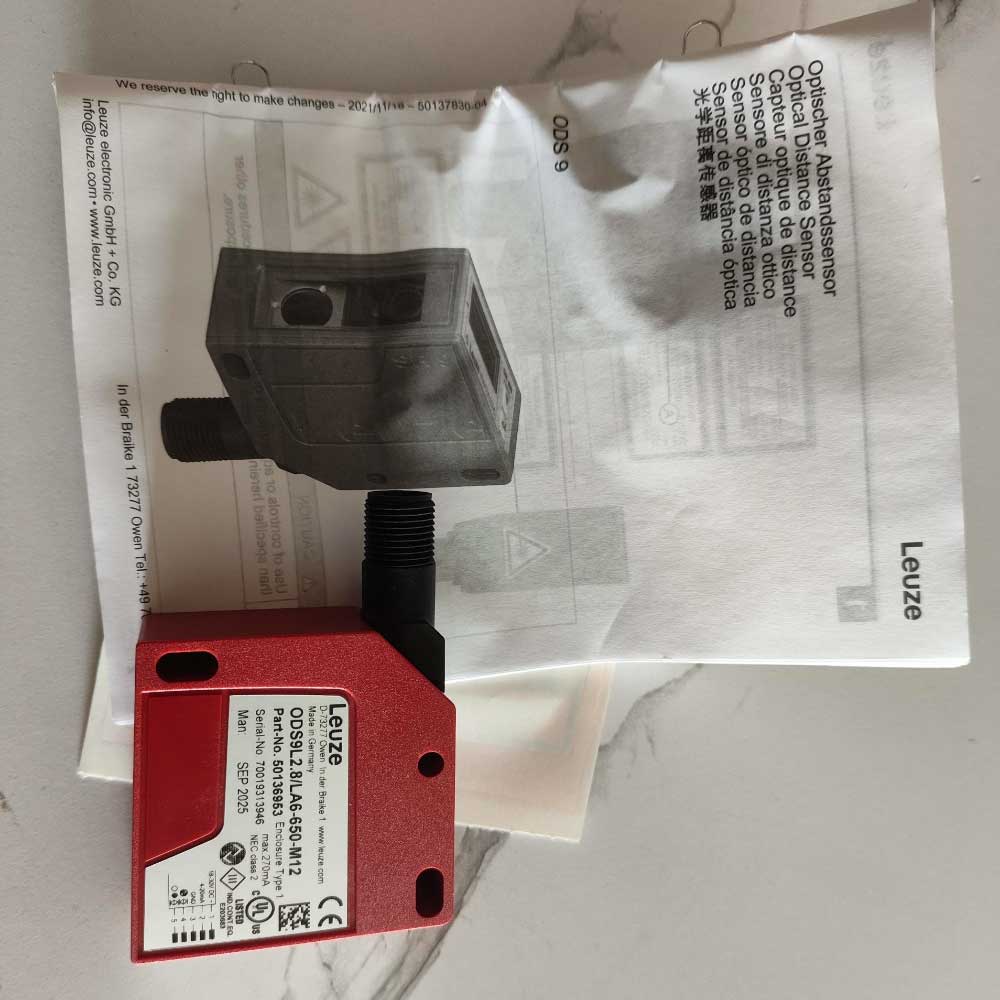

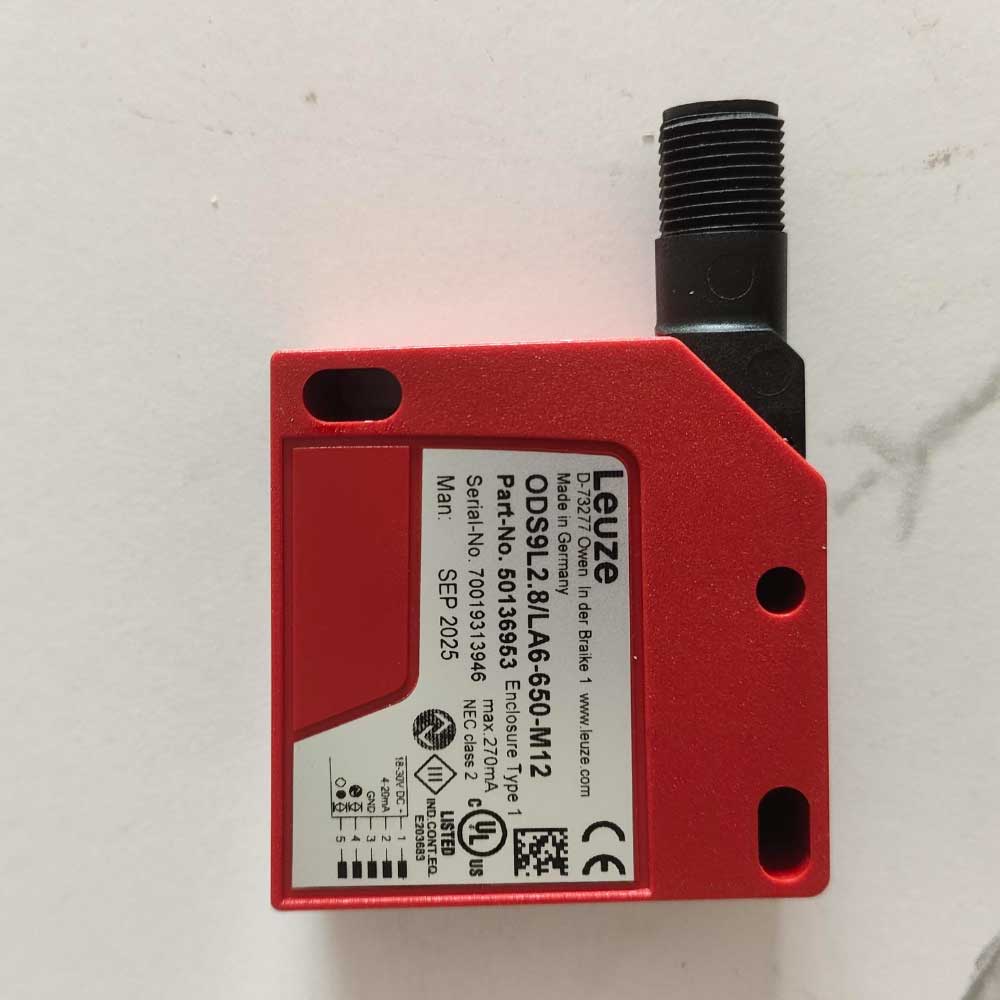

Leuze ODS9L2.8‑LA6‑650‑M12 Laser Distance Measuring Sensor

This original Leuze laser distance sensor adopts laser triangulation principle for precise object position detection and distance measurement in industrial automation. With measuring range from 50 mm to 650 mm, laser class 2, it is equipped with IO‑Link communication interface to realize convenient data transmission and parameter setting for PLC system.

The compact plastic housing features IP67 protection, which allows stable operation even under harsh workshop environment. Push‑pull transistor output supports fast signal feedback for automated production lines, material handling and conveyor systems.

✅Key Product Advantages ‑ IO‑Link interface for smart industrial communication ‑ Compact rectangular housing for limited installation space ‑ IP67 strong dust‑proof and water‑proof performance ‑ Class 2 safe laser for routine industrial use ‑ Reliable measurement for position & distance detection

📋Main Technical Specs ‑ Model: ODS9L2.8‑LA6‑650‑M12 ‑ Measuring Range: 50‑650 mm ‑ Laser Class: 2 ‑ Electrical Output: Push‑pull transistor ‑ Communication: IO‑Link ‑ Protection Rating: IP67 ‑ Connector: M12

💡Purchase Notice Stock availability and lead‑time need to be confirmed before order. We supply original industrial automation sensors with MOQ 1 piece. Please send us inquiry for formal quotation.
